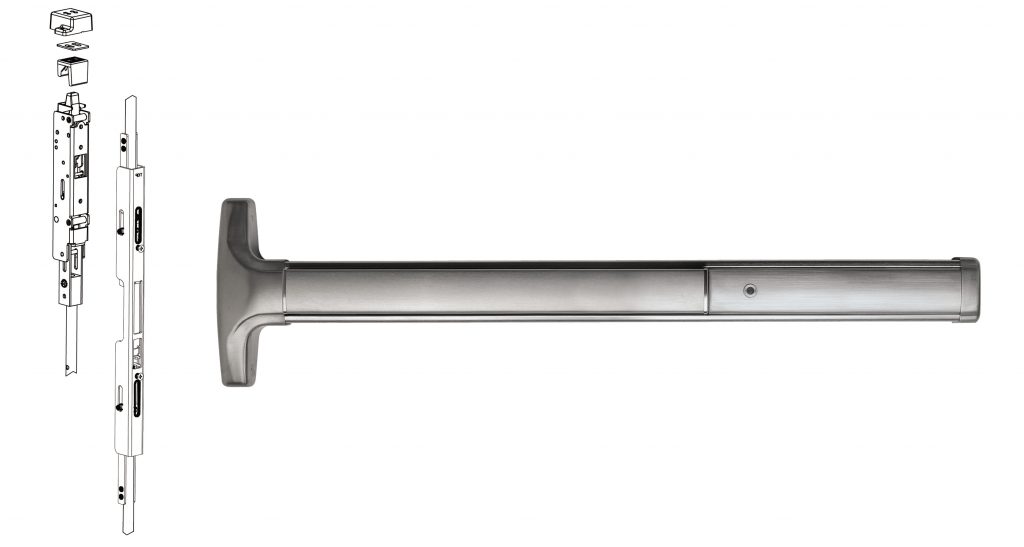

60 Series Narrow Stile Concealed Vertical Rod Exit Device
The 60 Series (Top and Bottom Rods) is super-heavy-duty panic and fire exit hardware for use on all types of narrow stile aluminum doors without a mullion. The patented mounting plate system ensures the easiest and most accurate installation of panic hardware available.
Features
- Heavy duty angled end cap deflects damage away from device
- 6-position multi-step action in top latch keeps top and bottom bolts retracted until door closes and provides more consistent relatching and security to door
- Top strike both secures the door and re-engages the latch bolts
- Except for 03R, outside trims are easily changed or rekeyed without removing device from door
- Rods are easily adjustable with rods installed in door
- Durable steel bottom drop bolt
Exit Alarm Options
Exit Alarm (EA)
Controlled Entry / Exit Options
Electric Dogging (ED)
Electric Latch Retraction (ER EX)
Delayed Egress (EE)
Delayed Egress With Latch Retraction (EE ER)
Signal Switch Options
Request To Exit Signaling Switch (EX)
Request To Exit High Current/Voltage Signaling Switch (EXV)
Latch Bolt Monitor (LX)
Latch Bolt Monitor High Current / Voltage (LXV)
